Which Filters Are Needed Before UV Water Treatment?
Cloudy well water can make an otherwise correctly sized UV system work harder than it should. The filters needed before UV treatment are not an optional add-on in many homes and cottages - they are what allow ultraviolet light to reach microorganisms reliably as water passes through the chamber.
UV water treatment is a proven, chemical-free way to inactivate microorganisms such as bacteria, viruses and protozoa. The UV lamp produces light at a germicidal wavelength that disrupts microorganism DNA, preventing reproduction. But UV does not remove dirt, sediment, minerals or organic material from the water. If particles shade microorganisms from the light, or if the water absorbs too much UV energy, disinfection performance can be reduced.
For that reason, the right prefiltration should be selected from your water conditions, not simply added by habit.
Why water needs filtering before UV
A UV system is designed around a specific flow rate and water quality. Clear water lets more UV energy pass through the water and reach the target microorganisms. Water that looks visibly cloudy is an obvious concern, but even water that appears clear can contain fine sediment, iron, manganese, tannins or dissolved organic material that affects UV transmittance.
Particles can also settle inside the UV chamber and coat the quartz sleeve that surrounds the lamp. The sleeve protects the lamp from water while allowing UV light to pass through. A dirty sleeve blocks light output, which is why regular inspection and cleaning remain part of dependable ownership.
Pre-filters have a second practical benefit: they protect plumbing fixtures, valves and the UV system itself from sediment buildup. For private wells, seasonal cottages and rainwater supplies, that extra protection can make routine maintenance more predictable.
Filters needed before UV: start with sediment control
For many residential UV installations, a sediment filter is the first and most necessary stage. It captures suspended particles before they enter the UV reactor. The appropriate micron rating depends on what is in your water and how quickly the filter loads up.
A 5-micron sediment filter is a common starting point for relatively clear water with light sediment. It can reduce fine particles without restricting flow as quickly as a tighter filter. Where water contains very fine silt, or where a water test and treatment professional indicate a higher level of particle control is required, a 1-micron filter may be more appropriate.
The trade-off is straightforward: finer filtration captures smaller material, but cartridges may need changing more often and can create more pressure drop. A filter that plugs quickly is not a sign that UV is failing. It is useful information that the incoming water has a greater sediment load than expected and may need a larger filter housing, staged filtration or source-water treatment.
If the water contains visible sand, grit or heavy sediment, consider a washable spin-down filter or larger sediment stage ahead of a fine cartridge. This prevents a small final filter from doing all the work and helps preserve household flow. A common arrangement is a coarse pre-filter followed by a finer cartridge before the UV system.
When sediment filtration alone is not enough
Sediment filters remove particles. They do not solve every water-quality issue that can interfere with UV performance. The need for additional treatment depends on a laboratory water test and the source of your water.
Iron and manganese
Iron and manganese can stain fixtures, create metallic tastes and build up on a quartz sleeve. They may be present as dissolved minerals, which means a basic sediment cartridge will not necessarily remove them. Depending on the form and concentration, dedicated iron and manganese treatment may be required before UV.
This matters because mineral scale and deposits can reduce the amount of germicidal light reaching the water. If you are cleaning the sleeve frequently or seeing orange, brown or black staining, it is worth addressing the mineral issue upstream rather than relying on more frequent UV maintenance.
Hardness and scale
Hard water does not automatically mean you need a water softener before UV. However, high hardness can lead to scale formation on the quartz sleeve, particularly where water is heated or where mineral levels are significant. A softener or scale-control solution may be beneficial when hardness is contributing to repeated sleeve fouling.
The right decision comes down to actual water chemistry, maintenance tolerance and household water use. Some homes operate well with regular sleeve cleaning; others benefit from reducing hardness before the UV chamber to maintain consistent performance with less upkeep.
Tannins, colour and organic matter
Tea-coloured water from surface influence, peat soils or decaying vegetation deserves attention before UV. Tannins and dissolved organic matter may reduce UV transmittance even when there is little visible sediment. Rainwater harvesting systems can also pick up organic material from collection surfaces and storage tanks.
Treatment may involve sediment removal followed by specialized media, activated carbon or other water-conditioning equipment selected for the test results. Carbon filtration can improve taste and odour and reduce certain organic compounds, but it should not be chosen as a substitute for proper microbiological protection. It also requires timely cartridge changes, as neglected carbon filters can become a place for biological growth.
What UV does not replace
UV treatment is highly effective at inactivating susceptible microorganisms when installed and maintained within its operating conditions. It does not remove sediment, chemicals, salts, heavy metals, hardness, chlorine, sulphur odours or dissolved minerals. It also does not leave a disinfectant residual in the plumbing after the chamber.
That distinction is useful for homeowners comparing treatment options. A whole-home UV system is often the final microbiological barrier after filtration and any required conditioning. For a cottage or private well, the treatment train may be more involved than for municipally supplied water. For a single-tap drinking-water system, the filtration needs may be different again because the flow rate and intended use are narrower.
A water test is the most reliable way to avoid guessing. At minimum, private water supplies should be assessed for microbiological quality and key conditions that affect UV performance, including turbidity, iron, manganese, hardness and colour. Test results can identify whether a simple sediment filter is enough or whether the UV system should follow dedicated treatment equipment.
A practical order for a home UV system

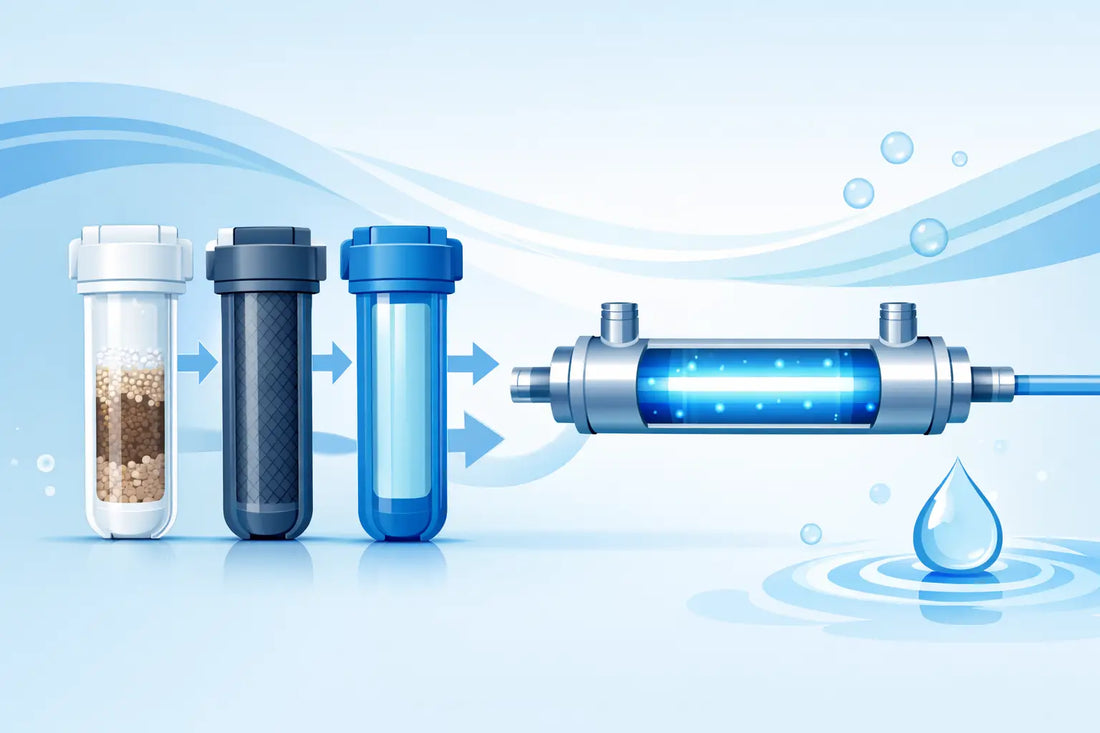

The usual sequence places treatment stages from coarse protection to fine protection, with UV close to the point where treated water enters the home distribution system. In a typical well-water installation, that may mean a sediment stage first, followed by treatment for iron, hardness or organic matter where required, then a final fine filter and the UV unit.
For municipal water, the setup may be simpler. If the water is already clear and microbiologically controlled, a UV system can serve as an added layer of protection, often with a sediment filter to protect the chamber. If chlorine taste or odour is a concern, carbon filtration may be included before UV, provided cartridges are maintained on schedule and the system is sized for the required flow.
Rainwater systems need particular care because water quality can change with season, roof condition, storage practices and rainfall. First-flush diversion, tank cleaning and sediment control support the UV system by reducing the material that reaches the final treatment stage.
Maintain filters so UV protection stays dependable
A filter only performs as intended when it is changed or cleaned before it becomes heavily loaded. Watch for reduced water pressure, visible discoloration in clear filter housings, recurring sediment and the service interval recommended for the cartridge and water conditions. Keep spare genuine replacement filters on hand for seasonal properties, especially when opening a cottage in spring.
UV maintenance matters at the same time. Lamps should be replaced at their rated service life even if they still appear to glow, because visible light is not a measure of germicidal output. Quartz sleeves should be inspected and cleaned as needed, and any alarm or controller message should be addressed promptly. Genuine VIQUA lamps, sleeves and compatible components help preserve the operating performance the system was designed to deliver.
The best pre-UV filter setup is the one that matches your source water, protects flow and keeps the quartz sleeve clear enough for UV light to do its job. Start with a water test, choose filtration for the conditions you actually have, and give each stage the routine care that dependable household water treatment deserves.
