How to Install a UV Bypass Valve Properly
A UV system protects water only while water is flowing through its treatment chamber. That is why the plumbing around the unit matters as much as the unit itself. When you install a UV bypass valve correctly, you gain a controlled way to isolate the system for lamp changes, quartz sleeve cleaning, winterizing, or service without shutting off all water to the building.
For a home, cottage, or small commercial property, the usual solution is a three-valve bypass arrangement. It is straightforward, reliable, and especially useful where a UV system is part of a whole-home treatment train. The key is to understand the trade-off: a bypass is for temporary service access, not normal operation. If it is left open, water can reach household taps without UV disinfection.
What a UV Bypass Valve Does
A bypass valve arrangement creates two possible water paths. In normal operation, incoming water is directed through the UV reactor before it continues to the home. During maintenance, the inlet and outlet valves to the UV unit are closed and the bypass valve is opened, allowing water to travel around the system.
This configuration lets you work on the UV equipment without draining the entire plumbing system. It can be particularly valuable at a cottage, where seasonal maintenance may be needed, or in a home where a short water interruption is inconvenient.

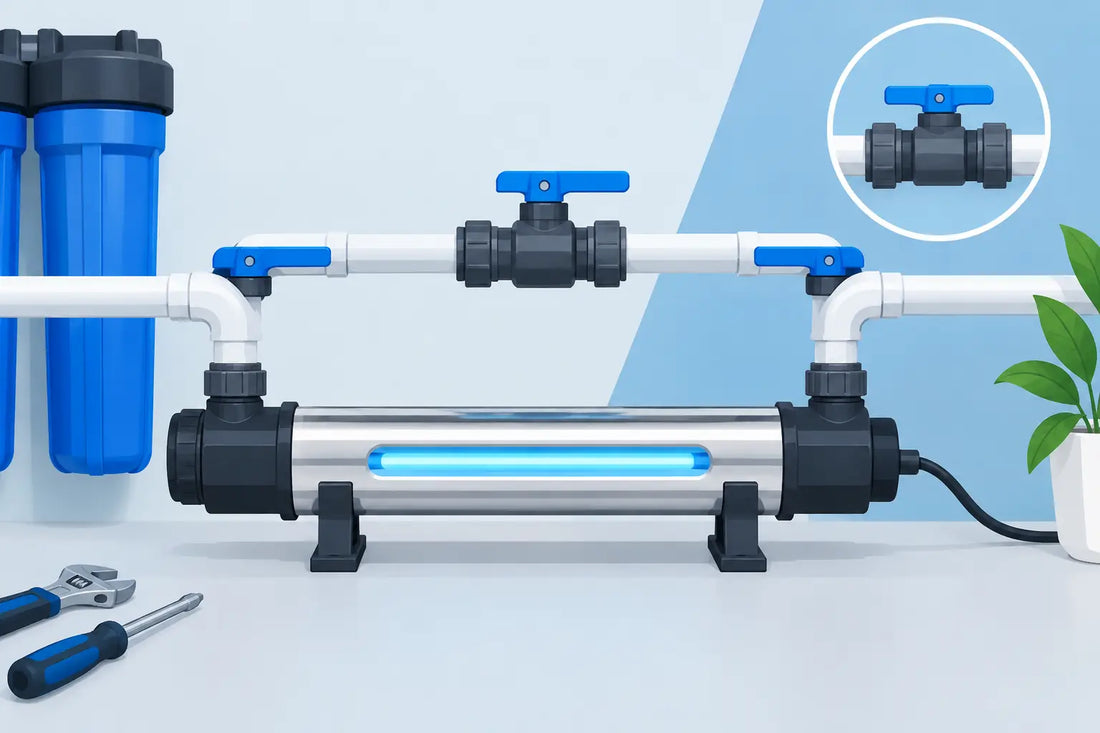

A standard arrangement uses three full-port ball valves: one on the UV inlet line, one on the UV outlet line, and one on a pipe joining the inlet and outlet lines around the reactor. Full-port valves are preferred because their opening closely matches the pipe diameter and does not unnecessarily restrict flow.
During normal use, the inlet and outlet valves remain open and the bypass valve stays closed. During service, the inlet and outlet valves are closed first, then the bypass valve is opened. Clear valve labels make this procedure much easier for anyone caring for the property.
Plan Before You Install a UV Bypass Valve
Start by confirming the correct place in the treatment sequence. A whole-home UV system is typically installed after sediment filtration and any other pre-treatment that improves water clarity. UV light must pass through the water to disrupt the DNA of microorganisms. Cloudy water, suspended sediment, iron staining, or hardness scale can reduce UV performance by blocking light or coating the quartz sleeve.
Install the bypass immediately around the UV reactor, not around the entire water-treatment system unless that is specifically required by the plumbing design. Keeping pre-filtration online during UV service helps prevent sediment from entering downstream plumbing.
Choose an accessible location with enough clearance to remove the UV lamp and quartz sleeve. Many UV chambers require room at one end for sleeve removal, so do not place elbows, walls, pressure tanks, or other equipment directly in the service path. Check the system installation manual for its stated clearance and mounting orientation before cutting pipe.
Also consider the water source. A private well, rainwater system, and seasonal cottage supply may have different water quality challenges than municipal water. If testing shows high sediment, manganese, iron, hardness, or tannins, address those conditions before relying on UV as the final disinfection barrier.
Materials and tools to prepare
The exact fittings depend on whether your plumbing is PEX, copper, CPVC, or another approved potable-water material. In most installations, you will need three full-port shut-off valves, pipe and compatible fittings, unions or other removable connections, pipe supports, and appropriate sealing materials for threaded joints.
Unions are a practical addition on both sides of the reactor. They allow the UV chamber to be removed or repositioned more easily if substantial servicing is ever required. Use components rated for the system pressure, water temperature, and potable-water use. A professional installer can help where existing plumbing is older, tightly configured, or outside your comfort level.
How to Install a UV Bypass Valve Arrangement
Before beginning, turn off the incoming water supply and shut off power to the UV controller. Unplugging the controller prevents electrical hazards while working near plumbing. Open a nearby cold-water tap to release pressure, then drain enough water from the line to make the work area manageable.
Mount the UV reactor according to its manual before finalizing the pipe layout. Pay close attention to the flow-direction arrow on the chamber, if present. The controller and electrical connections should remain dry, accessible, and protected from accidental damage. A grounded electrical connection and compliance with applicable Canadian electrical and plumbing requirements are essential.
Run the main water line from the pre-treatment equipment to the UV inlet. Install one isolation valve on this line, close to the UV chamber but with enough working room to operate it. From the UV outlet, run the treated-water line toward the home and install the second isolation valve.
Next, connect a parallel bypass line between the piping upstream of the inlet isolation valve and downstream of the outlet isolation valve. Put the third valve in this bypass line. This is the valve that remains closed while the UV system is operating.
The layout should resemble a wide U around the UV unit: water normally enters the reactor on one side and exits on the other, while the bypass line bridges those two points. Keep the pipe runs neat and well supported. Avoid placing excessive weight or strain on the UV chamber connections.
Once fittings have cured or been assembled according to their specifications, restore water slowly. Keep the bypass valve closed and open both UV isolation valves. Check every connection for leaks. Do not energize the UV system until the chamber is full of water and all air has been purged from the plumbing.
Open a downstream cold-water tap and allow water to run until sputtering stops. Then power up the UV controller and confirm it indicates normal operation. Genuine VIQUA systems provide clear controller information to help owners monitor lamp status and maintenance needs, but the plumbing valves still need a visual check after installation.
Test service mode before you need it
A new bypass arrangement should be tested deliberately. With the UV operating normally, confirm that the inlet and outlet valves are open and the bypass valve is closed. Then switch to service mode: close the inlet valve, close the outlet valve, and open the bypass valve. Water should continue to reach the building, while the UV chamber remains isolated.
Return to normal mode by closing the bypass valve first, then opening the outlet and inlet isolation valves. This sequence helps avoid accidentally leaving an untreated path open. Label each valve with durable tags such as “UV Inlet,” “UV Outlet,” and “Bypass - Keep Closed for Normal Use.”
Safety and Performance Considerations
A bypass provides convenience, but it also requires good operating discipline. Water travelling through the bypass does not receive UV treatment. For properties using UV as the primary barrier against waterborne microorganisms, schedule maintenance when temporary untreated water use can be managed appropriately.
If the UV lamp is being replaced, the quartz sleeve is cleaned, or the reactor is drained, follow the manufacturer’s instructions carefully. Never look directly at an operating UV lamp outside its chamber. Allow hot lamps to cool before handling them, and handle quartz sleeves gently to prevent breakage.
After service, disinfect or flush the system as directed in the equipment manual. Where the plumbing has been opened or the system has been inactive for an extended period, a proper restart process helps restore dependable operation. UV treatment does not leave a residual disinfectant in the pipes, so maintaining clean plumbing and replacing pre-filters on schedule remains part of protecting water quality.
For a seasonal cottage, drain and winterize the UV system according to the manual if the building will freeze. A bypass does not protect a water-filled reactor from freezing on its own. It simply makes isolation and draining easier.
When Professional Installation Makes Sense
Many confident homeowners can manage a straightforward bypass using familiar plumbing materials. However, hiring a qualified plumber or water-treatment professional is sensible when the system serves a large home, a rental property, a food-service business, or a light-commercial application. Professional help is also worthwhile where the installation includes pressure tanks, pumps, softeners, iron filters, or complicated existing piping.
The goal is not merely to make the water flow. The goal is to preserve the correct treatment path, maintain the system’s rated flow conditions, provide safe electrical access, and make future maintenance uncomplicated. A clean installation pays back every time a lamp or sleeve needs attention.
A properly labelled UV bypass valve gives you service access without sacrificing clarity about which water is treated. Keep the bypass closed in daily operation, maintain authentic replacement components on schedule, and your UV system can continue providing quiet, chemical-free reassurance at every tap.
